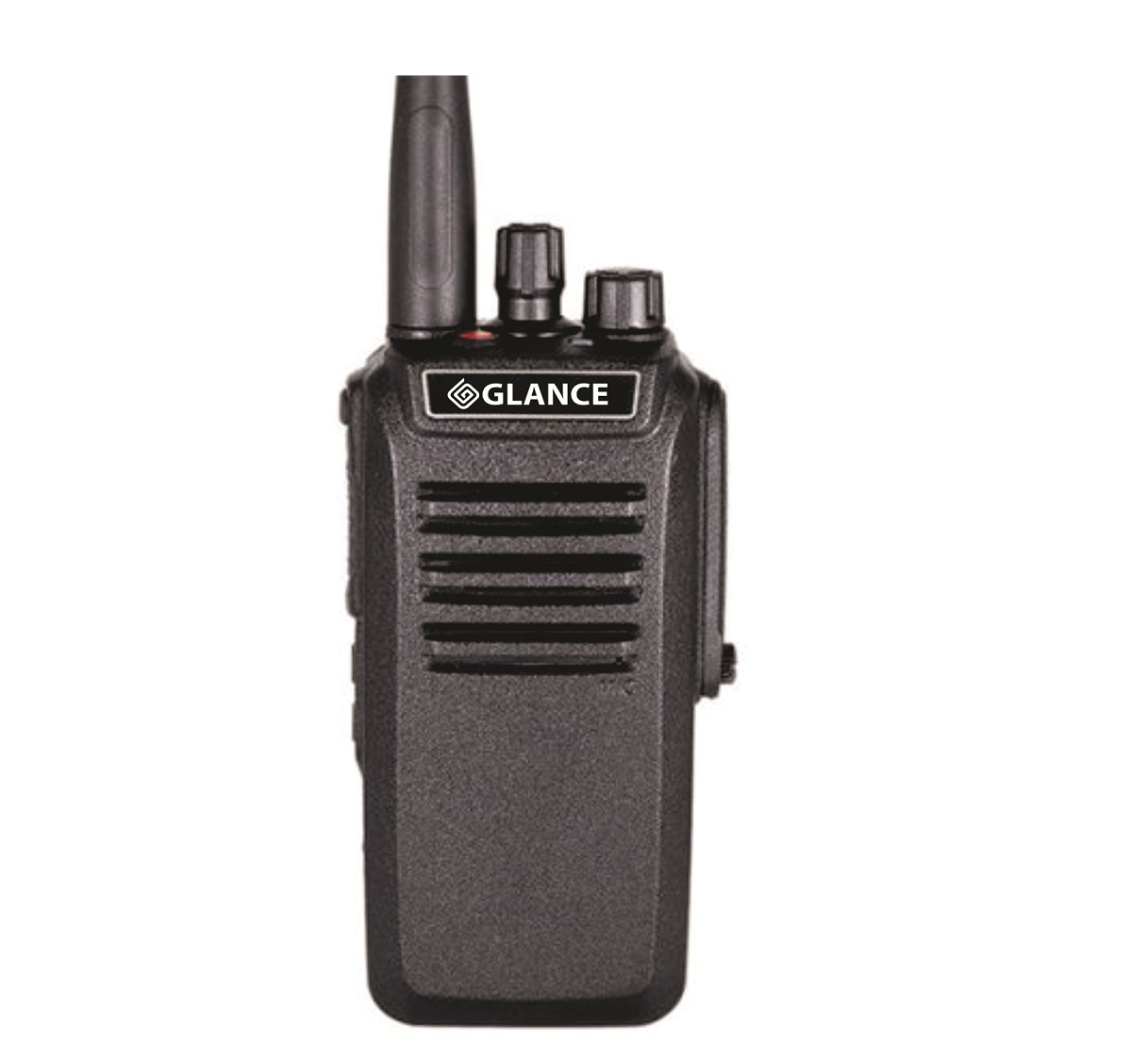

Máy bộ đàm GLANCE GC-8800 dải tần VHF
- Dải tần VHF Từ 136-174mhz
- Số kênh : 16 kênh
- Công suất phát: 10W.
- Pin Li-Poly dung lượng lớn: 2200mAh.
- Thời gian đàm thoại dài từ 15-25 giờ
- Tiêu chuẩn chống bụi, chống nước và chống va đập.
- Kích thước: 150 x 70 x 40 mm.
- Trọng lượng: 232g.
*****************************
Professional Security Long Range Communication Two Way Radio
Long distance radio communication,with shockproof,waterproof and dustproof,T-850 portable radio is specifical customized for users in industries,which Harsh, noisy and dusty working conditions in megaproject and construction sites may lower your efficiency.
Quick Details
1.10W/5W/2W Power Switch with Side-key operation
2.Chinese/English Voice Announcement
3.Wide/Narrow Bandwidth Selection 12.5KHz/25KHz
4.CTCSS&DCS non-standard code
5.Battery Saver
6.Low Battery Alert
7.Check battery capacity by handheld operation and will annouce the capacity in current status
8.VOX on/off, VOX level setting, VOX delay time setting
9.DTMF/PTT ID
10.Busy Channel Lockout
11.Scan, Auto scan, Priority Channel Scan, Scan Add, Scan Delete
12.TX Power Level Adjustment by hand operation
13.Monitor / Monitor Momentary
14.Squelch level report, Squelch level adjustment
15.TOT function
16.Emergency Alarm
17.2 Tone
18.Remote Kill,Stun,Activate&Revive
19.Tail Tone Eliminate
20.Auto Power Off
21.Wire Clone
22.PC Software Program
Specification
| GENERAL |
| Frequency Range | 136-174MHz/ 400-480MHz |
| Operating Temperature | -20℃to +55℃ |
| Frequency Combination | please lock frequency synthesize |
| Frequency Stability | ±2.5ppm |
| Memory Channel | 16 |
| Working voltage | 7.4V |
| Antenna Impedance | 50Ω |
| Operating Mode | different-frequency simplex or same-frequency simplex |
| Dimensions | 122*60*38mm |
| Weight | 232g |
| TRANSMIT PART |
| RF power | 10w |
| Modulate Mode | F3E |
| Max.Freq.Deviation | ≤5KHz |
| Remain Wave Radiation | <-60dB |
| Transmitting Current | ≤1000mA |
| RECEIVER PART |
| Sensitivity | <0.20uV (12dB SINAD) |
| Squelch Sensitivity | <0.20uV |
| Intermodulation interference | 50dB |
| Audio Power output | 500mW |
| Receiving Current | ≤100mA |
| Squelch Standby | 20mA |
