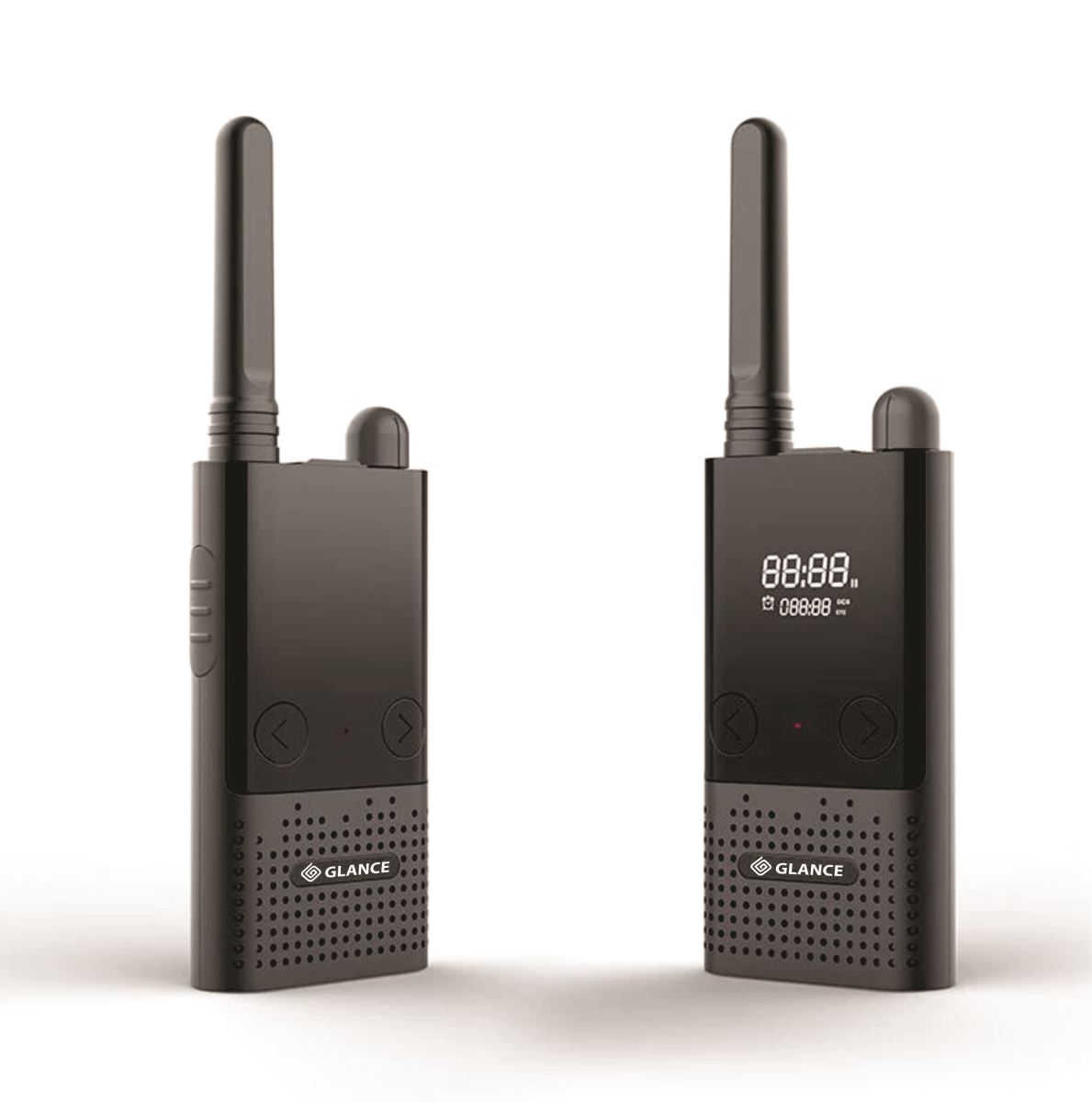

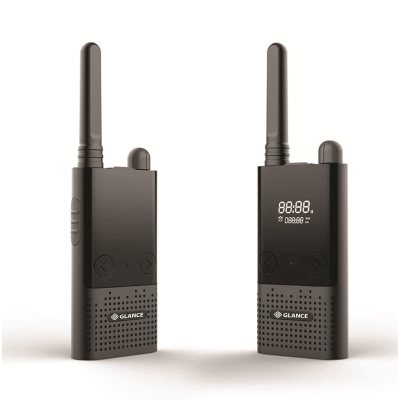

Bộ đàm cầm tay Mini GLANCE GC09

Công suất : 2W

Số kênh : 99 kênh

Dải tần : 420-450Mhz

Điện áp DC3.7V（li-ion Battery

Kích thước: 53.5x22x165MM

Main Features
1、3.7V Rechargeable Lithium Battery
2、Frequency Range：UHF 420-450MHZ
3、Wide/Narrow Band Selection:25KHz/12.5KHz
4、Stepped frequency:5K/6.25K/12.5K/25K
5、Output power：2W/05W
6、50 Groups CTCSS，105 Groups DCS
7、Up to 99 Channels(1-99)
8、Time-out timer(TOT)
9、VOX Level: OFF/1/2/3/4/5
10、Busy Channel Lockout (BCLO)
11、Carrier mode scan for channel
12、Squelch Level:0-9
13、Battery Saving Function
14、Monitoring Function
15、Low Battery Voltage Warning/Indication
16、Chinese/English Language
17、Programmable by PC

General
Frequency range 420-450MHz
Memory channels 99
Operation voltage DC3.7V（li-ion Battery）
Frequency stability ±2.5ppm
Operation temperature -20℃~+50℃
Mode of operation Simplex
Antenna impedance 50Ω
Ground connection Negative electrode
Volume 53.5x22x165MM

Receiver
Sensitivity <0.16uv (12dB SINAD)
Squelch Sensitivity <0.2uv
Audio power ≥380mW
Audio distortion <10%
Intermodulation ≥65dB
Receive current ≤380mA

Transmitter
RF Power 2W/0.5W
Modulation FM
Max frequency deviation ≤±5KHz
Stray Radiation ≤-60dB
Transmit current ≤1000mA
Preemphasis Character 6dB/per octave

Standard Package Content
Walkie talkie
Li-Ion battery
Belt Clip
User's Manual
Charger
