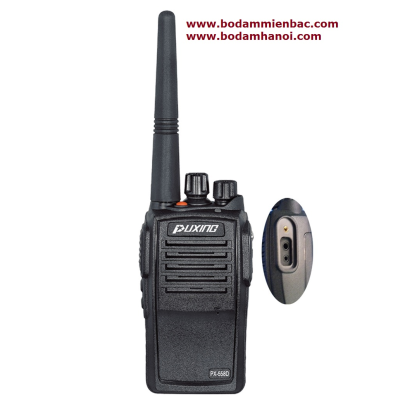

Bộ đàm cầm tay Puxing PX-558D
|
IP67 DPMR digital radio PX-558D General specification |
|
Miniature and attractive design |
110x50x35mm |
|
Frequency Range |
136-174/400-470MHz |
|
channel capacity |
16 /customized |
|
digital codec=Vocoder Type |
AMBE+2C |
|
4FSK digital modulation |
4KCOFIE |
|
Digital-analog compatible |
analog-digital transition smoothly |
|
Digital advantage than analog |
much clearer and encription voice |
|
Digital encryption key length |
32bits |
|
higher promoted spectrum utilization |
12.5khz FDMA system |
|
channel space |
Narrow: 12.5KHz/ Wide:25KHz |
|
waterproof and dustproof |
IP67 |
|
power |
5W |
|
battery capacity |
1200-1600mAh li-ion battery |
|
CTCSS+DCS |
51 CTCSS+107DCS |
|
Squelch Type |
1-16 levels adjustable |
|
Battery Life(5-5-90working cycle) |
10hrs |
|
Smart/quick charge |
3-4 hrs |
|
DTMF Signal codec |
Yes |
|
Talk Around function |
Yes |
|
VOX Sensitivity setting |
0-9 levels |
|
antenna impedance |
50Ω |
|
antenna interface |
SMA-K |
|
Accessories interface type 2pin or 1pin |
2pin |
|
Operating Voltage |
7.4V DC |
|
Operating Temperature |
-20℃~+60℃ |
|
Transmitter |
|
Frequency stability |
±2.5ppm |
|
Modulation distortion |
≤3% |
|
FCC modulation |
16K0F3E(25K) |
|
Spurious response |
-36dBM(≤1GHz), -30dBM(＞1GHz) |
|
FM noise abatement |
≥45dB(25K) |
|
Receiver |
|
|
Reference Sensitivity |
≤0.25μV(25K) |
|
Adjacent Channel Selectivity |
≥70dB(25K) |
|
Intermodulation rejection |
≥65dB |
|
Spurious response |
≥65dB |
|
Rated Audio Distortion |
≤10% |
|
Audio Distortion |
≤3% |
|
OEM/ODM |
support imprint your logo on products |
|
Warranty |
1year for radio,6monthes for battery |
|
shipment |
FedEx 3-5days TNT 5-8days |
