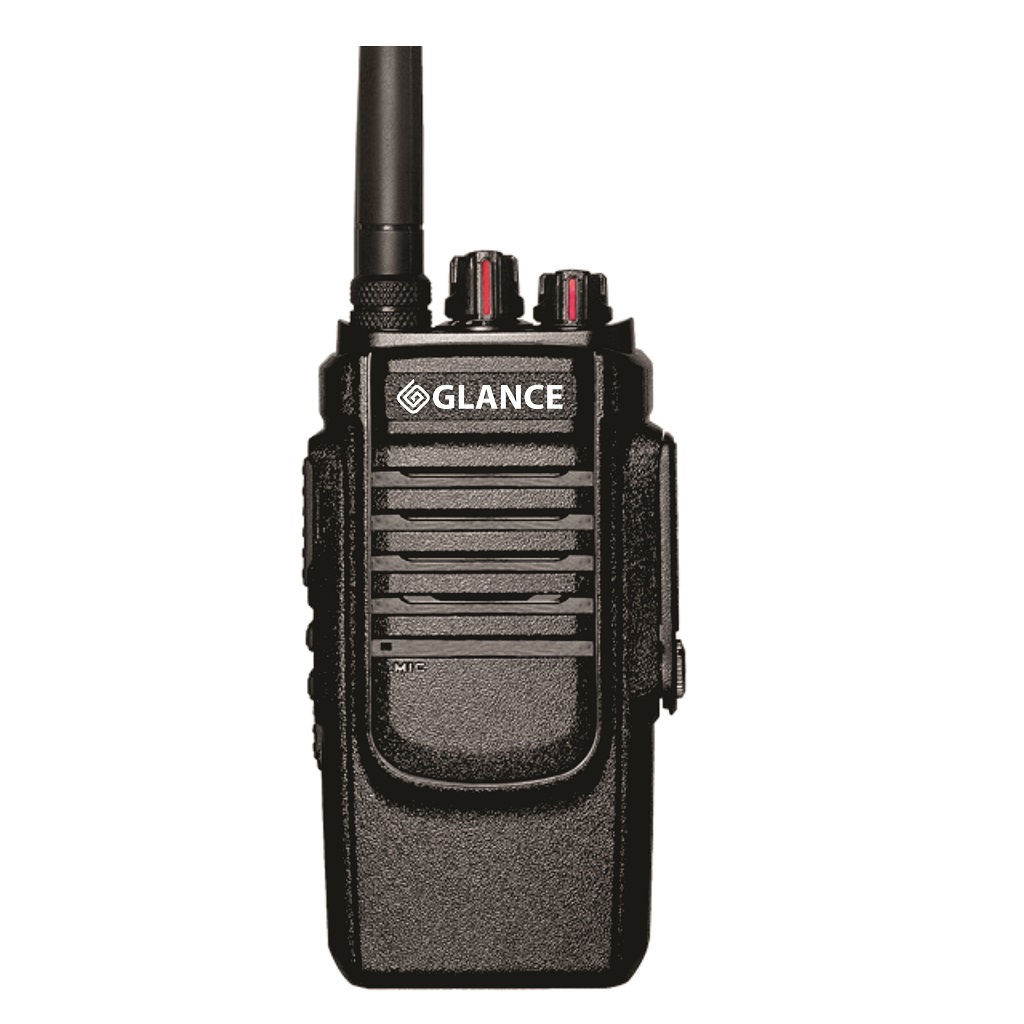

Máy bộ đàm GLANCE GC-6500 dải tần VHF
- Công suất phát: 10W.
- Dải tần VHF 136-174MHZ
- Số kênh : 16 kênh.
- Pin Li-ion dung lượng lớn: 2800mAh.
- Băng tần 12.5KHz/ 25KHz.
- Chế độ tiết kiệm pin.
- Cảnh báo pin yếu.
- 2 Tone.
- Thời gian đàm thoại dài 20-30 giờ.
- Trọng lượng: 255g.
*************************
Product Detail
10W Single Band VHF UHF Walkie Talkie Handheld Two Way Radio
Handheld Two Way Radio,with shockproof,waterproof and dustproof,T-850 portable radio is specifical customized for users in industries,which Harsh, noisy and dusty working conditions in megaproject and construction sites may lower your efficiency.
Quick Details
◊16 channels
◊ 10W/5W/2W Power Switch with Side-key operation
◊ Chinese/English Voice Announcement
◊ Wide/Narrow Bandwidth Selection 12.5KHz/25KHz
◊ CTCSS&DCS non-standard code
◊ Battery Saver
◊ Low Battery Alert
◊ Check battery capacity by handheld operation and will annouce the capacity in current status
◊ VOX on/off, VOX level setting, VOX delay time setting
◊ DTMF/PTT ID
◊ Busy Channel Lockout
◊ Scan, Auto scan, Priority Channel Scan, Scan Add, Scan Delete
◊ TX Power Level Adjustment by hand operation
◊ Monitor / Monitor Momentary
◊ Squelch level report, Squelch level adjustment
◊ TOT function
◊ Emergency Alarm
◊ 2 Tone
◊ Remote Kill,Stun,Activate&Revive
◊ Tail Tone Eliminate
◊ Auto Power Off
◊ Wire Clone
◊ PC Software Program
Specification
GENERAL |
Frequency Range | 136-174MHz/400-480MHz |
Operating Temperature | -20℃to +55℃ |
Frequency Combination | please lock frequency synthesize |
Frequency Stability | ±2.5ppm |
Memory Channel | 16 |
Working voltage | 7.4V |
Antenna Impedance | 50Ω |
Operating Mode | different-frequency simplex or same-frequency simplex |
Dimensions | 123.39*63.87*39.63mm |
Weight | 255g |
TRANSMIT PART |
RF power | 10w |
Modulate Mode | F3E |
Max.Freq.Deviation | ≤5KHz |
Remain Wave Radiation | <-60dB |
Transmitting Current | ≤1000mA |
RECEIVER PART |
Sensitivity | <0.20uV (12dB SINAD) |
Squelch Sensitivity | <0.20uV |
Intermodulation interference | 50dB |
Audio Power output | 500mW |
Receiving Current | ≤100mA |
Squelch Standby | 20mA |
