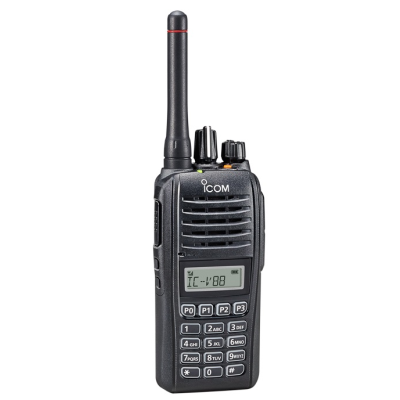

Máy bộ đàm ICOM IC-V88-VHF (Pin BP-279)
- Dải tần hoạt động: 136-174 MHz.
- Dung lượng kênh: 128 kênh.
- Công suất hoạt động: 5.5W.
- Công suất âm thanh: 1500mW.
- Tiêu chuẩn chống bụi và nước: IP67.
Thông số kỹ thuật
| General |
| Frequency coverage | 136–174 MHz |
| Type of emissions | 16K0F3E, 11K0F3E (25/12.5 kHz) |
| Number of channels | 128 channels |
| Antenna impedance | 50 Ω |
| Power supply requirement | 7.5 V DC |
| Operating temperature range | -30 ˚C to +60 ˚C (Radio only) |
| Frequency stability | ±2.5 ppm |
| Current drain (Approximate) | Tx High: 1.5 A
Rx (Maximum audio/Stand-by): 500 mA (Internal SP) / 77 mA |
| Transmitter |
| Output power (at 7.5 V DC) | 5.5/ 2.0/ 1.0 W (Hi/L2/L1) |
| Maximum frequency deviation | ±5.0 kHz/±2.5 kHz (Wide/Narrow) |
| Spurious emissions | 70dB minimum |
| External microphone connector | 3-conductor 2.5 (d)mm (1/10ʺ)/2.2 kΩ |
| Receiver |
| Sensitivity | 0.25 µV typical (at 12 dB SINAD) |
| Squelch sensitivity | 0.25 µV typical (at threshold) |
| Adjacent channel selectivity | 76 dB/ 53 dB typical (W/N) |
| Intermodulation | 74 dB typical |
| Spurious response | 70 dB minimum |
| Audio output power | Internal speaker: 1500 mW typical (8 Ω load)
External speaker: 400 mW typical (8 Ω load) |
| External speaker connector | 3-conductor 3.5 (d) mm (1/8ʺ)/ 8 Ω |
| Ingress Protection Standard |
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
- Phụ kiện gồm:
+ Pin BP-279 Li-ion 1485mAh;
+ Bộ sạc nhanh để bàn BC-213;
+ Anten, bát cài.
- Sản xuất tại Nhật Bản.
- Bảo hành: 24 tháng cho thân máy, 12 tháng cho Pin và phụ kiện.
