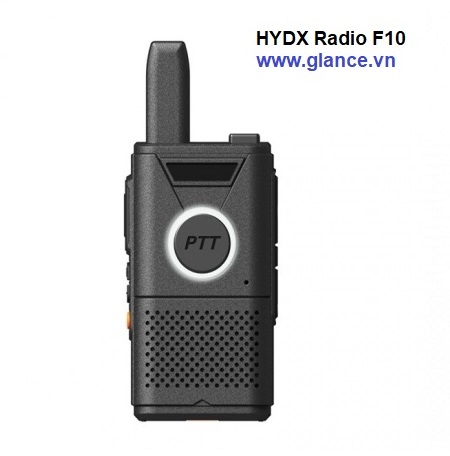

Máy bộ đàm HYDX Radio F10
Production Description：
·HYDX F10 is a cost-effective product with 1200mAh capacity batteries. It is lightweight, portable and free of license. It can be used indoors and in commercial establishments.
·Small walkie talkies; less than 0.6 inches thick;weighing only 0.26 pounds; it can be easily held by both adults and children.
·Double PTT design; there is a large PTT button on the front of the walkie talkie; it can easily transmit and receive in winter even with gloves.
·Sturdy metal back clip; you can clip it to a belt or backpack; you don’t have to worry about the back clip breaking or deforming.
·1200 mAh Li-ion battery provides 10-12 hours of frequent use on a single charge.
·Key lock; long press the channel down button to hear two beeps, and you will fix the current channel; long press the channel down button again; after hearing one beep; you can change the channel normally.
·Compact;lightweight and easy to use；F10 walkie talkies a great option for occasional use at picnics;camping;short hikes or keep in touch with the children.
Main Functions
1.400-470MHz
2.Scrambler Function
3.Output Power 2W
4.16 Channel
5.Monitor
6.CTCSS / DCS
7.VOX
8.Scanning
9.USB-Cable
10.Double PTT design
General Specifications
| GENERAL |
| Frequency Range | UHF:400-470MHz |
| RF Output Power | 2W |
| Channel | 16 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedance | 50Ω |
| Operating Temperature | -20℃+60℃ |
| Operating Voltage | DC 3.7V |
| Battery Type | 1200mAh |
| Dimension(Excluding antenna) | 97.5(H)×55(W)×20.5(D)mm |
| Weight(Battery、Antenna including) | ABout 90.8g |
| TRANSMITTER |
| RF Power | 2W |
| Modulation Mode | F3E |
| Modulation Distortion | ≤ 5% |
| Frequency Stability | ±5ppm |
| Adjacent Channel Power | -60dB@12.5KHz -65dB@25KHz |
| RECEIVER |
| Sensitivity | ≤ -121 dBm |
| Adjacent Channel Selectivity | 55 dB |
| Inter-modulation | 55 dB |
| Block | 85 dB |
| Rated Output Power | ≤500mW |
| Rated Audio Distortion | ≤5% |
