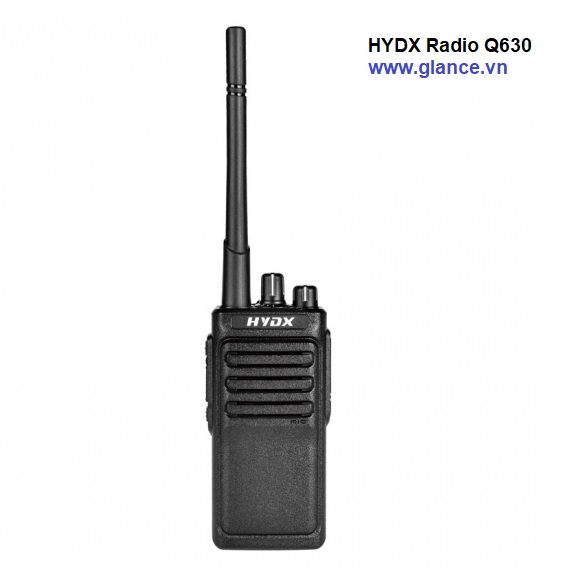

·High power dual band(VHF /UHF) radio, 16 Channels, Programming ham radio.
·Antenna provides a long distance to communicate , the strong penetration that ensure a clear calls in cities, obstacles, mountains.
·To provide a high quality sound even in noisy environments, ensure you definitely get clear transmit and receive audio.
·If you have any questions, please feel free to contact us and we will try our best to solve them.
Main Functions
1.136-174MHz/400-470MHz
2.High/Low Power Switchable 10W/5W
3.High Battery Capacity 2200mAh
4.Monitor
5.Tail Elimination
6.VOX
7.Power Save
8.Channel Scanning
Technical Specification
| GENERAL |
| Frequency Range | UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:10W±1W L:5W±0.5W |
| Channels | 16 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -20℃+60℃ |
| Operating Voltage | DC 7.4V |
| Battery Type | 2200mAh |
| Dimension(Excluding antenna) | 132(H)×62(W)×35(D)mm |
| Weight(Battery,Antenna Including) | About 280g |
| TRANSMITTER |
| Output Power | H:10W±1W L:5W±0.5W |
| Frequency Stability | ±1.5×10-6ppm |
| Modulation Mode | F3E |
| Modulation Sensitivity | 12±5 mV |
| Adjacent Channel Power | ≥65 dB |
| Modulation Distortion | ≤1% |
| Transmit Spurious Emission | ≥62 dB |
| RECEIVER |
| Reference Sensitivity | ≤122 dBm |
| Adjacent Channel Selectivity | ≥55 dB |
| Inter-modulation response immunity | ≥55 dB |
| Block | ≥84 dB |
| Rated Output Power | ≤1000mW @16Ω |
| Rated Audio Distortion | ≤5% |
