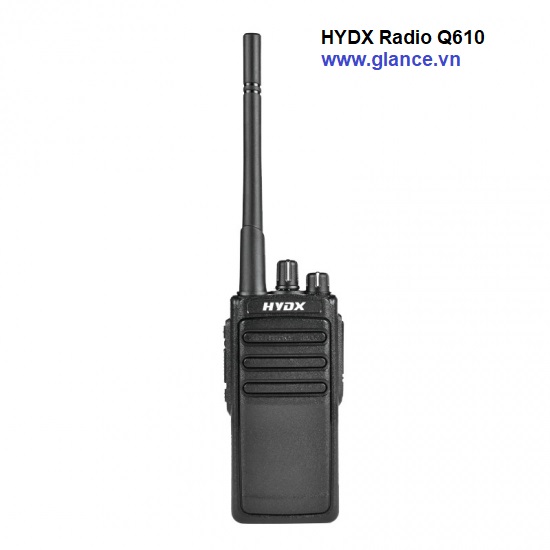

Máy bộ đàm HYDX Radio Q610
10miles Long Range Portable Two Way Radios
Product Description：
·Strong shell and stubborn accessories will last long time and save cost for your business.
·2200 mAh battery will last about 18-24 hours using;power your working time all the time.
·Belt clip and VOX function will offer real hands free;improve your working efficiency.
·Equipped with 6 way gang charger and charging 6 pack walkie talkies together to save time for your business.
·Emergency alarm will protect your safety when you work alone.
Main Functions
1.136-174MHz/400-470MHz
2.High/Low Power Switchable 10W/5W
3.High Battery Capacity 2200mAh
4.Monitor
5.Tail Elimination
6.VOX
7.Power Save
8.Channel Scanning
Technical Specification Q610
| GENERAL |
| Frequency Range | UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:10W±1W L:5W±0.5W |
| Channels | 16 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -20℃+60℃ |
| Operating Voltage | DC 7.4V |
| Battery Type | 2200mAh |
| Dimension(Excluding antenna) | 132(H)×62(W)×35(D)mm |
| Weight(Battery,Antenna Including) | About 280g |
| TRANSMITTER |
| Output Power | H:10W±1W L:5W±0.5W |
| Frequency Stability | ±1.5×10-6ppm |
| Modulation Mode | F3E |
| Modulation Sensitivity | 12±5 mV |
| Adjacent Channel Power | ≥65 dB |
| Modulation Distortion | ≤1% |
| Transmit Spurious Emission | ≥62 dB |
| RECEIVER |
| Reference Sensitivity | ≤-122 dBm |
| Adjacent Channel Selectivity | ≥55 dB |
| Inter-modulation response immunity | ≥55 dB |
| Block | ≥84 dB |
| Rated Output Power | ≤1000mW @16Ω |
| Rated Audio Distortion | ≤5% |
