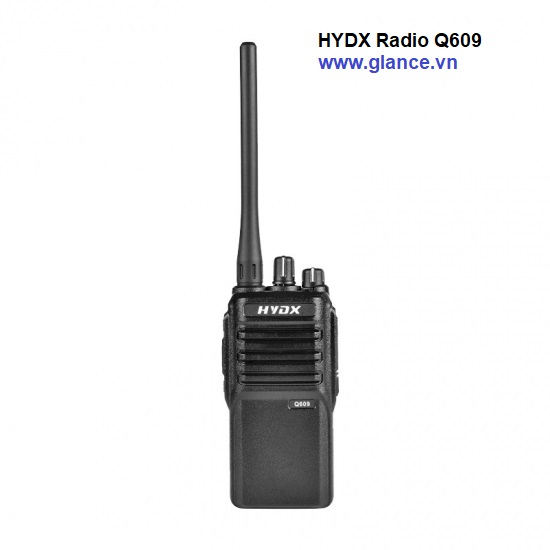

Máy bộ đàm HYDX Radio Q609
UHF High Power Reliable Rugged Two Way Radio
Product Description：
·As Juston's flagship product, Q609 is a walkie talkie with high power and high-capacity battery, business appearance and rich functions.
·High power and U band portable heavy duty 2 way radios features extremely strong obstacle penetration ensuring you have long distance talk up to 5 miles in urban work and mountainous survival.
·Rugged design eliminate the intrusion of dust.
·Squelch blocking background noise and other conversations enable you have crystal clear sound transmission without static and distortion under its range.
·2800 mAh Large battery capacity give you 5~7 days standby time.
·Good reception and crystal transmission sound; strong penetration and audio keep you and your team always stay in contact with loud clarity sound quality in building or outdoor.
Main Functions
1.VOX
2.SOS
3.Scan
4.1750Hz
5.Scrambler
6.Compandor
7.Battery Save
8.Tail Elimination
9.Battery Report
10.High/ Low Power
11.PC Programmable
12.Wide/Narrow Band
13.SK Programmable
14.Chinese/English Voice Report
15.CTCSS/DCS Support Non-standard
Technical Specification
| GENERAL |
| Frequency Range | UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:10W±1W L:5W±0.5W |
| Channels | 16 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -20℃+50℃ |
| Operating Voltage | DC 7.4V |
| Battery Type | 2800mAh |
| Dimension(Excluding antenna) | 132(H)×61(W)×43(D)mm |
| Weight(Battery,Antenna Including) | About 280g |
| TRANSMITTER |
| Output Power | H:10W±1W L:5W±0.5W |
| Modulation | F3E |
| Modulation Sensitivity | 12±5 mV |
| Adjacent Channel Power | ≤-65 dB(Wide) ≤-55 dB(Narrow) |
| Modulation Distortion | ≤5% |
| Transmit Spurious Emission | ≤-65 dB |
| RECEIVER |
| Reference Sensitivity | ≤-122 dBm |
| Adjacent Channel Selectivity | ≥65 dB |
| Inter-modulation | -55 dB |
| S/N | ≥50 dB (Wide) ≤-40 dB (Narrow) |
| Rated Output Power | ≤1W |
| Rated Audio Distortion | ≤5% |
