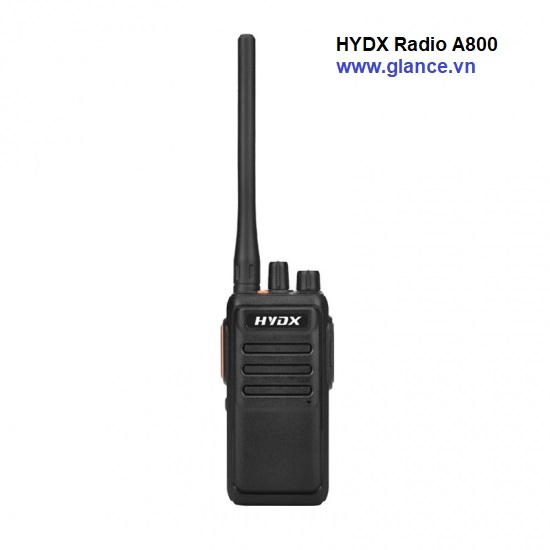

Máy bộ đàm HYDX Radio A800
Product Description：
·HYDX A800 has stable performance, high power and large capacity battery, and supports HYDX-A518 dual color housing. Very cost-effective, can be used in public areas, outdoor and other places.
·Long range with perfect size make them easy to hold; super compact for long life using; gets long range with the included antenna and exceptional 2200 mAh rechargeable Li-ion battery; each radio includes its accessory
·VOX Mode for hands-free provides great reception and transmit clarity to keep on communicate with fellow co-worker;you can attach the radio to the belt and clip the earphones to the colla
·Worry-free day night shift with a large-capacity 2200mAh Li-ion rechargeable battery;up to 20 hours of battery life per charge.
Main Functions
1.400-470MHz/136-174MHz
2.Chinese/English voice report
3.High/Low Power Switchable
4.Compandor
5.Scrambler
6.16 Channels
7.VOX
8.CTCSS/DCS
9.BCLO
10.Scan
12.Wide/Narrow Band
13.VOX
Technical Specification
| GENERAL |
| Frequency Range | UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:≤8W L:≤2W |
| Channels | 16 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -30℃+60℃ |
| Operating Voltage | DC 7.4V |
| Battery Type | 2200mAh |
| Dimension(Excluding antenna) | 124(H)×58(W)×39(D)mm |
| Weight(Battery,Antenna Including) | About 230g |
| TRANSMITTER |
| Output Power | H:≤8W L:≤2W |
| Modulation Mode | F3E |
| Modulation Sensitivity | 12±5mV |
| Modulation Distortion | ≤ 1% |
| Frequency Stability | ±1.5×10-6ppm |
| Adjacent Channel Power | ≥ 65 dB |
| RECEIVER |
| Reference Sensitivity | ≤ -122 dBm |
| Adjacent Channel Selectivity | ≥ 55 dB |
| Inter-modulation response immunity | ≥ 55 dB |
| Block | ≥ 84 dB |
| Rated Output Power | ≤1000mW |
| Rated Audio Distortion | ≤5% |
